High-Pressure Engineering

Hardware Built for Scale.

Deeptech infrastructure for the decentralized hydrogen economy. From tap water to 700 bar automotive standards.

Architecture

8-Component Integrated System

01

RO Filtration

Internal reverse osmosis and deionization producing ultra-pure water.

02

Power Electronics

DC/DC conditioning (2–3 kW) matching electrolyzer load to grid or solar input.

03

PEM Stack

Proton Exchange Membrane electrolysis at 2-3 kW nominal power.

04

LP Buffer

Process stabilization tank (30 bar) decoupling production from compression.

05

HP Compression

Multi-stage piston compression from 30 bar to 700 bar automotive grade.

06

HP Buffer

Ultra-compact 700 bar storage (<10 L) optimized for safety and rapid dispensing.

07

SIS Control

Redundant Safety Instrumented System and PLC orchestrating fail-closed operations.

08

SAE J2601 Interface

Standard infrared nozzle for universal FCEV compatibility.

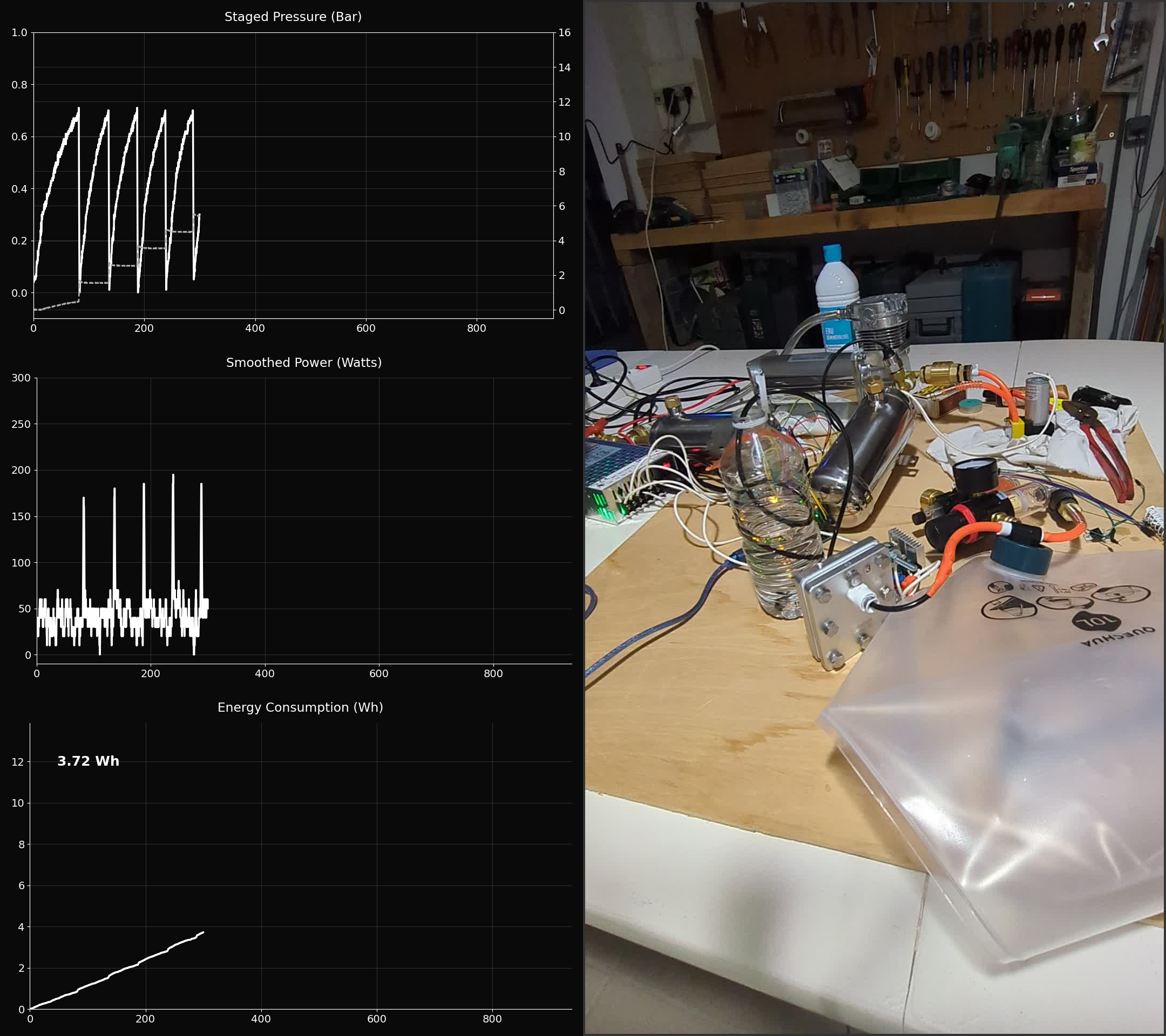

Engineering Analysis Layout
Safety Protocols

Fail-Closed. Buffer-Less.

Our design priority is absolute safety over peak efficiency. We minimize stored energy to eliminate catastrophic failure modes.

  • Buffer-Less Design: HP storage limited to <10 L, minimizing potential energy release.

  • SIS Logic: Independent hard-wired safety circuits (SIS) bypass software for critical stops.

  • Zone 2 ATEX: Full compliance with ATEX 2014/34/EU for residential environments.

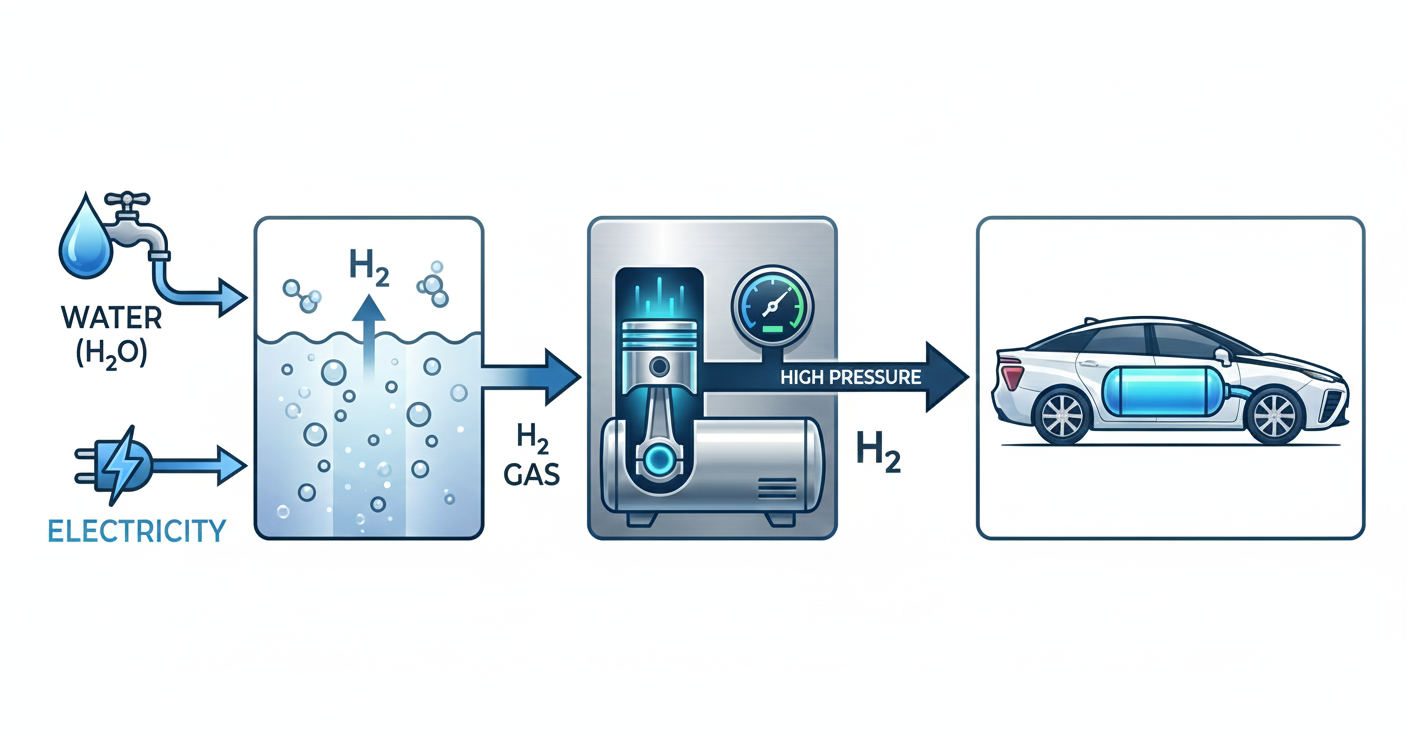

Hydrodomus Process Flow
System Process Flow
Specifications

V1 Engineering Benchmarks

Output Pressure700 bar (70 MPa)
Hydrogen Purity99.99% (ISO 14687)
System Efficiency~65% (Elec → H2)
Power Nominal2–3 kW
Refuel Time~3 Minutes
Footprint0.75 m²

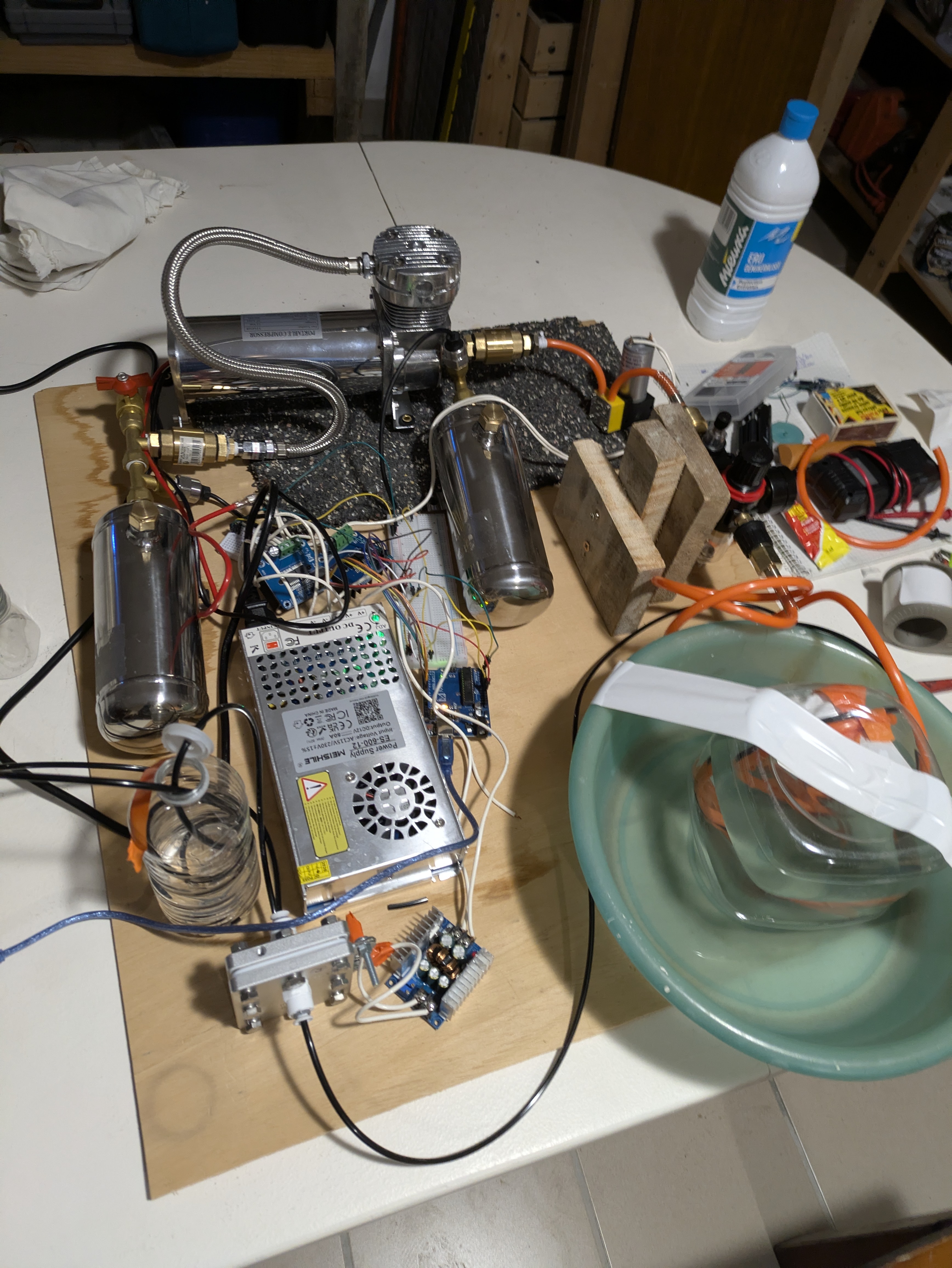

Hardware Prototype
Vision

Decentralizing Energy.

Our mission is to unlock mass hydrogen mobility by removing the infrastructure bottleneck. We build the "Tesla Home Charging" equivalent for H2, turning every garage into a clean energy hub.

Deployment Roadmap

PHASE 1 (CURRENT)

Functional Prototype & MVP Validation

PHASE 2-3

OEM Bundling & Low-Volume B2C Launch

PHASE 4-5

B2B Fleet Expansion & Industrial Diversification
